5V Crimp Panel
5V Crimp Panel is a unique panel that is used in classic to modern applications. It is most commonly used for accents but can be used on a large scale from residential to commercial.
Highlights
- Highest Quality Materials Used
- Rib Spacing – 12” on center
- Rib Height – ½”
- 24” Coverage Width
- Recommended Minimum Slope 3:12 Pitch
- Up to 40 Year Limited Paint Warranty Available
- Please refer to 5V Crimp Panel Details Section to see all finishes and gauges available.
- Please refer to 5V Crimp Panel Details Section for Specifications.
Details
Industry Uses
Residential

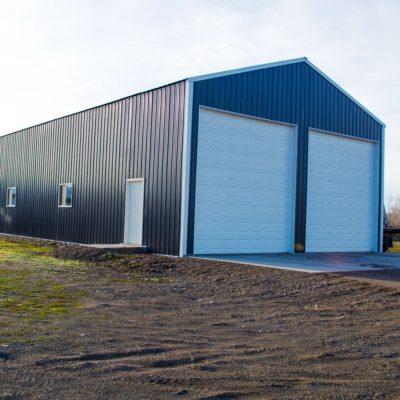

Post Frame
Agricultural
Light Commercial
Commercial
Industrial
Applications
Roofing
Siding
Interior
Soffit (non-vented)
Fascia
Features
Rib Height 1/2″
Rib Spacing 12″ on Center
Coverage 24″ wide
Recommended Minimum Slope 3:12 Pitch
Installation
Exposed Fastening System
Solid Substrate
Gauges Available
Standard Gauge(s): 29ga
Optional Gauge(s): 26ga
Panel Lengths
25’0″ For continuous panels over, please inquire
Standard Finish
Galvalume Plus
Warranties
Galvalume Plus Warranty
Color Selection
Non-Painted
Download Center
Product Info
Accessories
Under X Underlayment
Fasteners (Metal to Wood)
#10 HWH 1/4″ Micro-Bit KiwikSeal WoodBinder
#10 CHWH 5/16″ Micro-Bit ZXL WoodBinder
CHWH 5/16″ Micro-Bit ZXL WoodBinder
Closures & Venting
Pipe Flashings
Sealants & Tapes
Warranty Info
Technical Info (TIS)
