ProtectorX Series
Inverted PBR Wall Panel
The Inverted PBR (Purlin Bearing Rib) Wall Panel is a sleek wall panel that can add appeal to the wall of your building inside or out. This panel can be used for Walls and Fencing. Great panel for applications such as Interior and Exterior wall panels for Steel Buildings, Pole Barns, Shops, Barns and Fencing. Our standard color offering uses Grade 80 High Tensile Steel (80,000psi) for extreme strength and has a Galvalume® substrate and SMP (Silicone Modified Polyester) Paint with an available 40 Year Limited Warranty.
Highlights
- Highest Quality Materials Used
- Proven Reliability and Strength
- Easy Installation
- Exposed Fasteners
- Great for Walls and Fascia applications
- Sleek Design
- Up to 40 Year Limited Paint Warranty Available
- SMP High Tensile 26ga Grade 80 Steel (80,000psi)(Siliconized Modified Polyester Paint)
- Kynar 500®/Hylar 5000®/PVDF Painted Steel Available in 26ga & 24ga Grade 50 (50,000psi)
- Manufactured in Rigby, Idaho
- Please refer to Inverted PBR Wall Panel Details Section to see all finishes and gauges available.
- Please refer to Inverted PBR Wall Panel Details Section for Specifications.
Details
Industry Uses
Post Frame
Agricultural
Light Commercial
Commercial
Industrial
Applications
Siding
Interior
Soffit (non-vented)
Fascia
Fencing
Features
Rib Height 1 1/4″
Rib Spacing 12″ on Center
Coverage 36″ wide
Installation
Exposed Fastening System
Gauges Available
Standard Gauge(s): 26ga
Optional Gauge(s): 24ga, 22ga
(22ga is Perforated Galvanized Only)
Panel Lengths
2’4″ to 63’0″
Standard Finish
SMP (Siliconized Modified Polyester)
Optional Finishes
Kynar 500®/Hylar 5000®/PVDF
Kynar 500®/Hylar 5000®/PVDF Metallic
Galvalume®
Galvanized
Cold Rolled
Bonderized
Perforated Galvanized
Warranties
SMP up to 40 year Paint Warranty*
Kynar 500® up to 35 year Paint Warranty*
Color Selection
Grade 80 Standard 29ga
Grade 80 Standard 29ga Textured Finishes

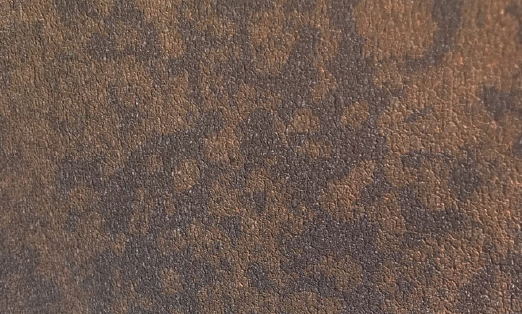

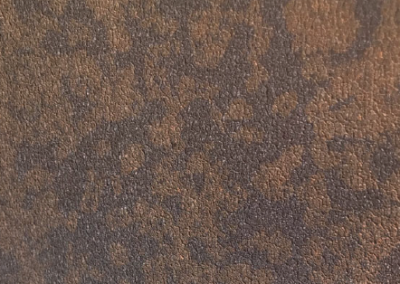

Rawhide 26ga
Select Rawhide Finishes
Grade 50 Standard 26ga
Non-Painted
Grade 80 Standard 26ga
Non-Painted
