2.67 x 1/2″ Corrugated Panel
The 2.67” Corrugated Panel is an exposed fastener Metal Roofing – Steel Roofing and/or Metal Siding – Steel Siding panel. This panel offers the versatility of being used in both vertical and horizontal applications. This Corrugated Roofing – Corrugated Siding panel gives the look of an old time application.
Highlights
- Highest Quality Materials Used
- Rib Spacing is 2.67” on center
- Rib Height is 1/2”
- Panel Width is 26” for 24” Coverage
- Minimum Pitch recommended 1:12 Pitch
- Up to 40 Year Limited Paint Warranty Available
- Please refer to 2.67” Corrugated Panel Highlights Section to see all finishes and gauges available.
- Please refer to 2.67” Corrugated Panel Highlights for Specifications.
Details
Industry Uses
Residential
Post Frame
Agricultural
Light Commercial
Commercial
Industrial
Applications
Roofing
Siding
Interior
Soffit (non-vented)
Fascia
Fencing
Features
Rib Height 1/2″
Rib Spacing 2-1/2″ on Center
Coverage 24″ wide
Recommended Minimum Slope 2-1/2:12 Pitch
Installation
Exposed Fastening System
Solid Substrate
Gauges Available
Standard Gauge(s): 29ga
Optional Gauge(s): 26ga
Standard Finish

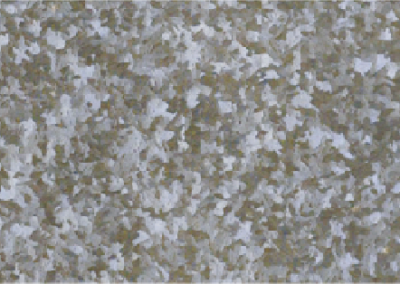

Galvalume Plus®
Optional Finishes
Limited Color Availability (please inquire)
Warranties
Galvalume Plus Warranty
Color Selection
Non-Painted
Download Center
Product Info
Accessories
Under X Underlayment
Fasteners (Metal to Wood)
#10 HWH 1/4″ Micro-Bit KiwikSeal WoodBinder
#10 CHWH 5/16″ Micro-Bit ZXL WoodBinder
CHWH 5/16″ Micro-Bit ZXL WoodBinder
Closures & Venting
Pipe Flashings
Sealants & Tapes
Novaflex Metal Roofing Sealant
Coil & Flat Panel
