R Panel

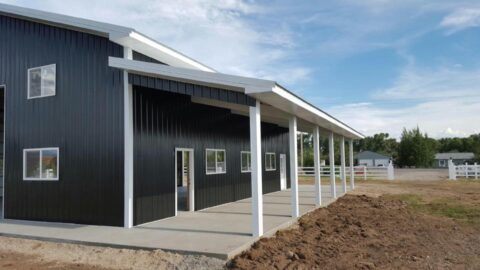

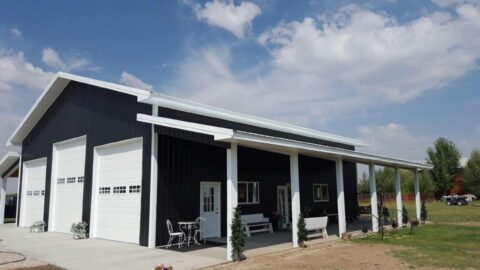

The R-Panel is one of the toughest and yet economical commercial metal panels available. This Steel Panel can be used for Walls and Fencing. These panels are great for Interior and Exterior applications for Steel Buildings, Pole Barns, Shops, Barns, Homes and Fencing. Our standard color offering uses Grade 80 High Tensile Steel (80,000psi) `for extreme strength and has a Galvalume® substrate and paint with an available 40 year limited paint warranty.
Highlights
- Highest Quality Materials Used
- Proven Reliability and Strength
- Easy Installation
- Exposed Fasteners
- Up to 40 Year Limited Paint Warranty Available
- SMP High Tensile 28ga Grade 80 Steel (80,000psi)(Siliconized Modified Polyester Paint)
- Manufactured in Rigby, Idaho
- Please refer to R-Panel Details Section to see all finishes and gauges available.
- Please refer to R-Panel Details Section for Specifications.
Details
Industry Uses
Residential
Post Frame
Agricultural
Light Commercial
Commercial
Industrial
Applications
Siding
Interior
Soffit (non-vented)
Fascia
Fencing
Features
Rib Height 1 1/4″
Rib Spacing 12″ on Center
Coverage 36″ wide
Installation
Exposed Fastening System
Gauges Available
Standard Gauge(s): 28ga
Optional Gauge(s): 24ga, 22ga
Panel Lengths
2’4″ to 63’0″
Standard Finish
SMP (Siliconized Modified Polyester)
Optional Finishes
Galvalume®
Galvanized
Warranties
SMP up to 40 year Paint Warranty*
Kynar 500® up to 35 year Paint Warranty*
Color Selection
Grade 80 Standard 26ga
Non-Painted
Premium
Grade 80 Standard 28ga
Grade 80 Standard 28ga Economy
Grade 80 Standard 28ga Textured Finishes
Grade 80 Standard 28ga Premium
Grade 80 Standard 28ga Low Gloss
-
Gloss Black
-
-
-
-
Download Center
Product Info
Accessories
Under X Underlayment
Fasteners (Metal to Wood)
#10 HWH 1/4″ Micro-Bit KiwikSeal WoodBinder
#10 CHWH 5/16″ Micro-Bit ZXL WoodBinder#10
#10 CHWH 5/16″ Micro-Bit ZXL WoodBinder
Closures & Venting
Pipe Flashings
Sealants & Tapes
Color Guides
Warranty Info
Technical Info (TIS)
